| The basic System consists of one Hood for each Pyre , all Hoods connected by common Duct, leading to Scrubber, through Blower, to Chimney. Most of the equipments are made from long lasting Stainless Steel. The crux of the System is the Scrubber, where the Smoke is scrubbed with Water and Chemical to remove the solid particles and to absorb the Carbon. The dirty water is filtered & reused for a period of time and then drained to sewage or can be used for gardening. The still hot but cleaner air is, then, let out at 100 feet height above ground through Chimney. Thus most of the pollution is absorbed in water and remaining is let out high above, reducing the pollution concentration to a minimal.. |
| |
|
|
|

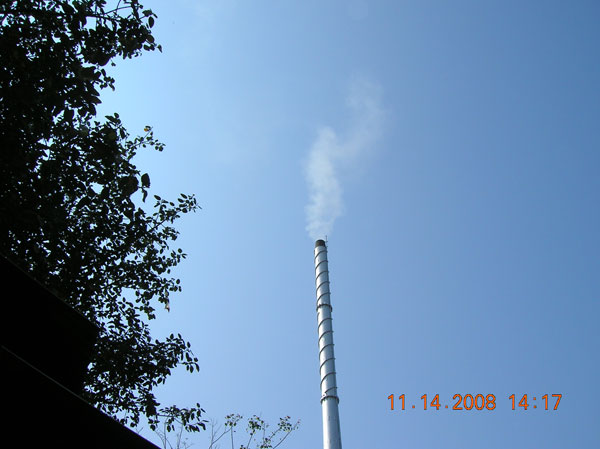

Chimney |

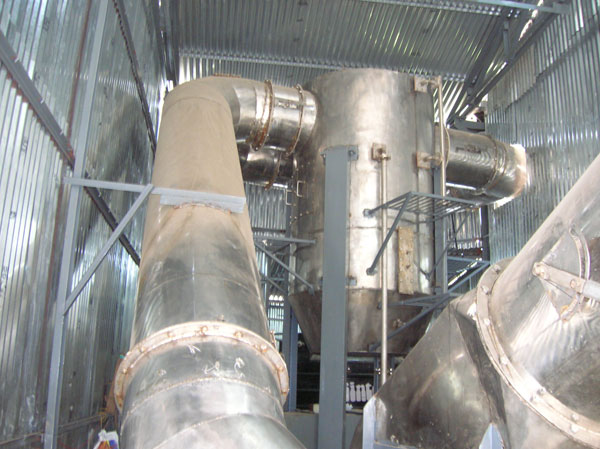

Scrubber (centre) |

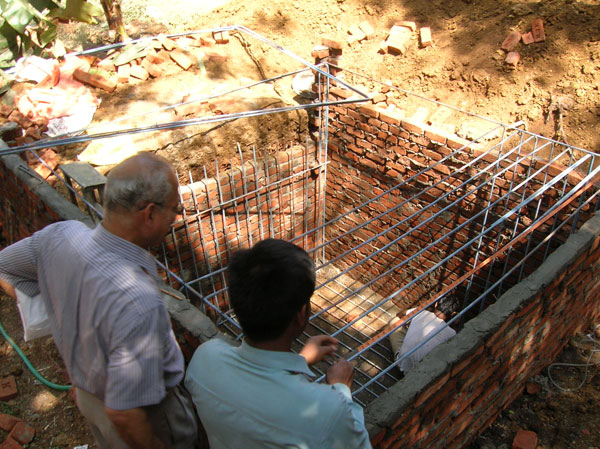

Chimney foundation |
| |
|
|
|
|
|

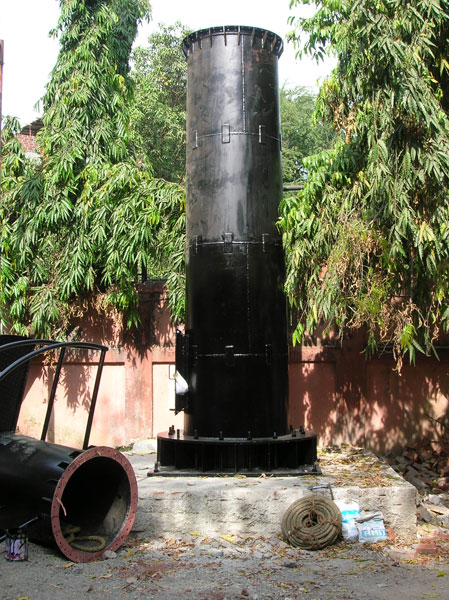

Chimney (bottom conical section) |

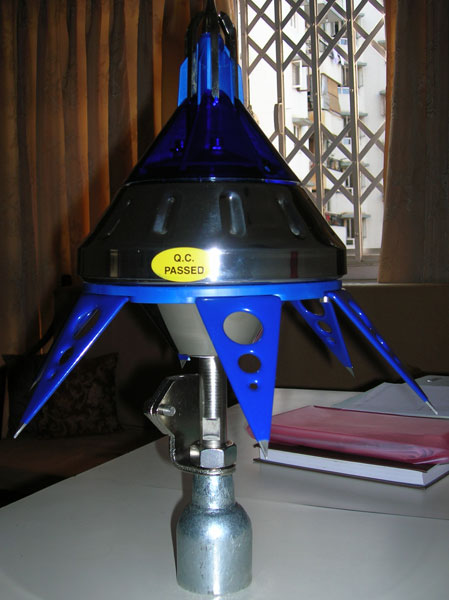

Specialized lightning conductor |

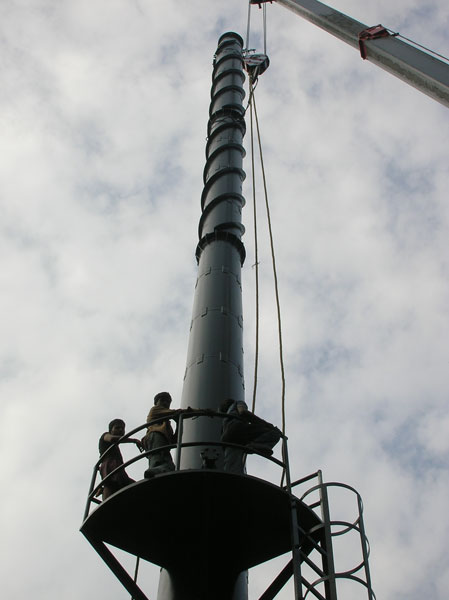

Chimney erection |
| |
|
|
|
|
|

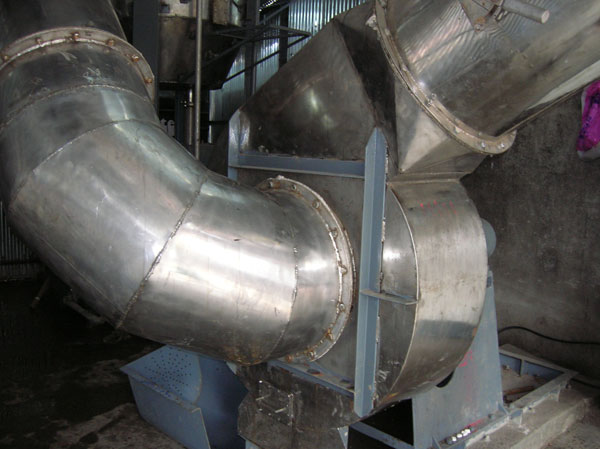

Exhaust blower |

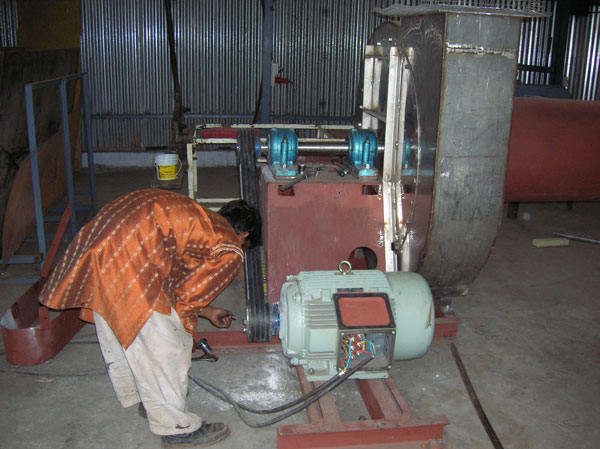

Blower testing (Workshop) |

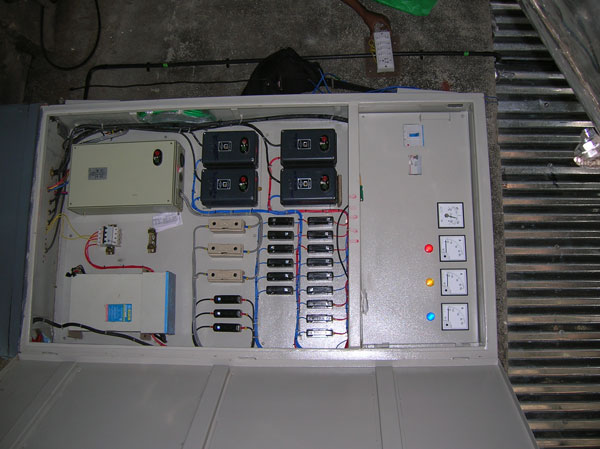

Electric panel |
| |
|
|
|
|
|

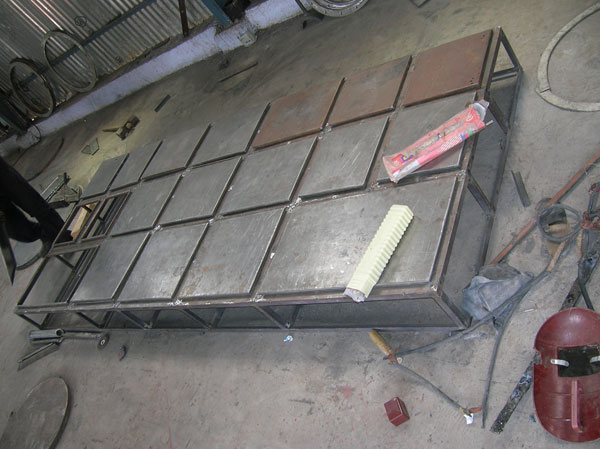

Electric Panel Fabrication (Dual System) |

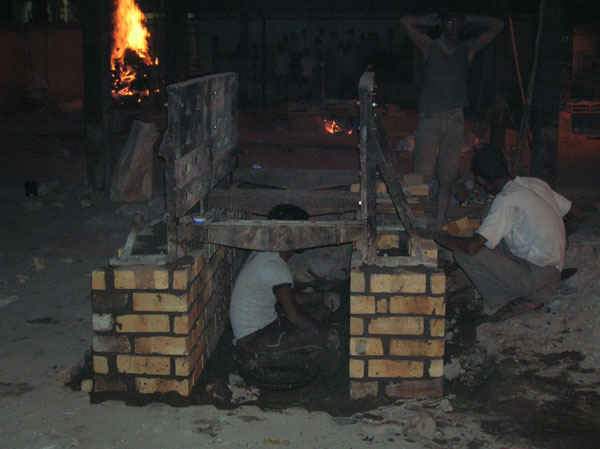

Pyre set refurbishment |

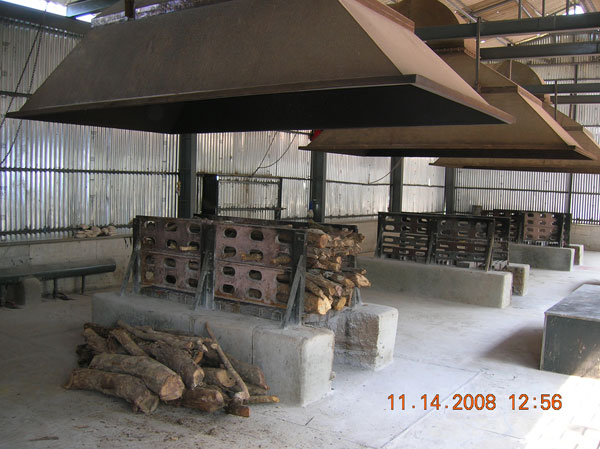

Furbished Pyre Set (With hood on top) |
|
| |
|
| |
|
